Flurine® H series is a low and middle Mooney bisphenol-vulcanized fluoroelastomer with a fluorine content of 69%. It is a copolymer of vinylidene fluoride (VF2) and hexafluoropropylene (HFP). It is commonly used in automotive, hydraulic, electrical and chemical industries. It has excellent extrusion processability, excellent chemical resistance, low expansion rate, low fuel permeability, especially for fuel hoses.

General

Features

High fluorine content. High fluidity

Uses

Shaft seals, oil seals, fuel hose. Extrusion molding

Forms

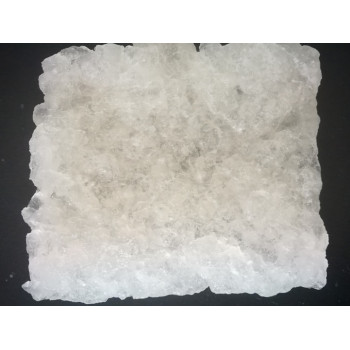

White or light-yellow flake

Items

Typical Value

Test Method

H228

H728

Physical Properties

Fluorine Content（mass%）

69

69

Density（g/cc）

1.85~1.90

1.85~1.90

ASTM D297

Mooney Viscosity

20~49

50~99

ASTM D1646 ML 1+10 at 121°C

Water content

0.15

0.15

ASTM D 5668

Vulcanization Properties

T10（s）

<260

<120

ASTM D5289

T90（s）

<420

<360

ASTM D5289

Mechanical Properties

Tensile strength（MPa）

11

11

ASTM D412 Method A

100% Modulus

4.2

4.4

ASTM D412 Method A

Elongation at Break（%）

160

160

ASTM D412 Method A

Tearing Strength（KN/m）

15

18

ASTM D624

Hardness, Shore A

77

77

ASTM D2240, Type A

Compression Set

35

35

ASTM D395, Test B 70 hours at 200℃

Thermal Properties

TR10（℃）

-17

-17

ASTM D1329

Brittleness Temperature（℃）

-30

-30

ASTM D2137

Chemical resistance Properties

Resistance to liquids

Methanol, 23℃×70h

Tensile strength change rate（%）

-10

-8

ASTM D412 Method A

Elongation at Break change rate(%)

+20

+18

ASTM D412 Method A

100％Elongation change rate（%）

-12

-10

ASTM D412 Method A

Hardness change, Shore A

-4

-3

ASTM D2240, Type A

Volume change rate（%）

+3.5

+3.3

Formulation

Curing condition

Polymer            100      MT carbon black，N990   30

Calcium hydroxide    6        Magnesium oxide         3

Fluorocure-5#        2.5

Press

Oven

10min at 177°C,0.5°

24h at 230°C
