Zheflon® PVDF 2022—Lithium battery binder grade

Zheflon® PVDF 2022—Lithium battery binder grade

Zheflon® PVDF 2022—Lithium battery binder grade
Zheflon® PVDF 2022—Lithium battery binder gradeZheflon® PVDF 2022—Lithium battery binder gradeZheflon® PVDF 2022—Lithium battery binder grade
CategoriesPVDF for Li-batteries
AlbumView larger image
BrandFlurine
Model2022

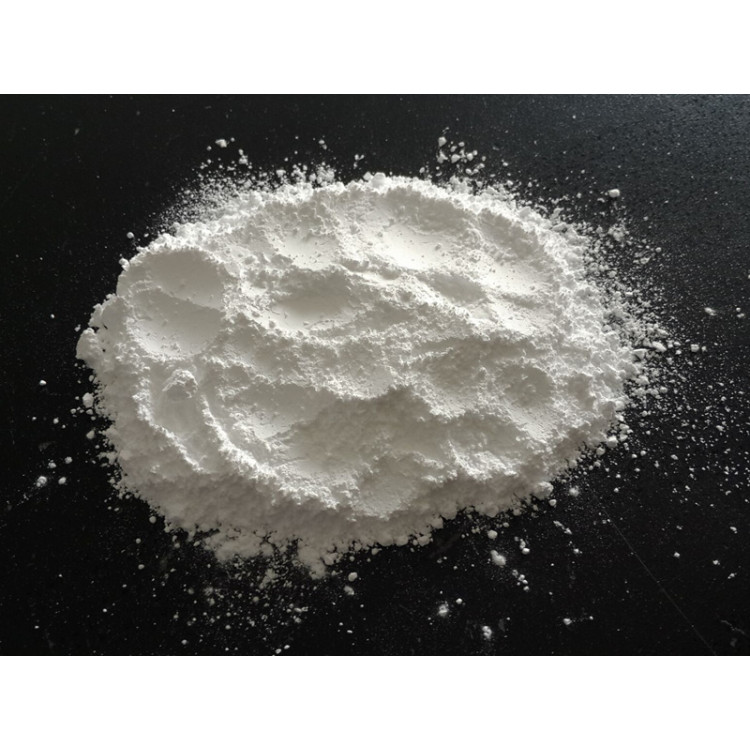

AppearanceWhite powder
Density1.75~1.77 g/cm3
Application3C digital battery
Update Time2019-10-23
Detail Information

2022 lithium battery grade PVDF is a white powdery resin with strong solubility, medium and high viscosity characteristics, which can meet the requirements of general 3C digital lithium battery binder.


Characteristic

Physical properties

Unit

Typical Value

Test Method

Appearance

——

White powder

——

Density

g/cm3

1.75~1.77

ASTM D792,23℃

Intrinsic Viscosity

dl/g

1.9

30,DMAC

Rotational viscosity

cps

4000

6RPM #3 spindle,25℃

1gPVDF/10gNMP

Solubility

——

The solution is clear and transparent, and the color is colorless or slightly yellow. The solution is free of impurities and insoluble.

1gPVDF/10mLDMAC

30℃,1h

Molecular weight

——

>700,000

GPC,DMF,ISO 16014

Water absorption

%

≤0.10

ISO 62

Particle size

μm

15

ISO 22412

Thermal properties







Melting point

158~164

ASTM D3418

Crystallizing heat

130~140

ASTM D3418


1.PVDF should be processed under 260℃,to avoid producing toxic gases;

2.PVDF has good fire resistance and smoke inhibition property, however, when meets with fire, it will release toxic hydrogen fluoride gas and fluorocarbon compounds;

3.Operators should take good care of personal protection during the use procedure and processing.

25 kg packages can be provided. PVDF is packed in PE plastic bag and then put into a hard cardboard drum. It must be stored in clean, cool, dry place.
