Zheflon® FL2611 PVDF
Polyvinylidene fluoride copolymer with low melt viscosity grade,suitable for applications in coatings &cable industries.
| Categories | PVDF for Lithium Batteries |
|---|---|
| Brand | Zheflon PVDF & Flurine FKM Manufacturer |
| Model | FL2611 |
| General Features | Copolymer, low melt viscosity |
| Use | Injection, powder coating |

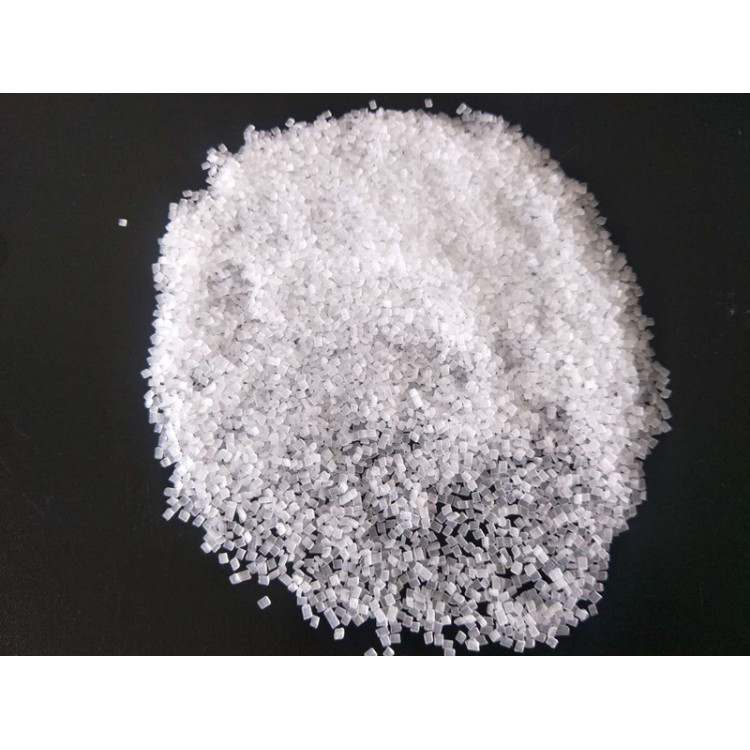

| Forms | White powder or white translucent particles |
| Update Time | Apr 19,2024 |
Detail Information
Zheflon® FL2611 is a polyvinylidene fluoride copolymer with a low melt viscosity grade and is particularly suitable for applications in coatings and cable industries. It has the typical characteristics of thermoplastic fluororesin. It has excellent chemical stability, temperature resistance, corrosion resistance, weather resistance to most active substances and solvents. It gives the cable excellent mechanical properties, flexibility and electrical properties, high temperature resistance and corrosion resistance, low flammability and smoky.
General | ||
Features | Copolymer, low melt viscosity | |
Uses | Injection, powder coating | |
Forms | White powder or white translucent particles | |
Items | Typical Value | Test Method |
Physical Properties | ||
Density（g/cc） | 1.77~1.80 | ASTM D792 |
Melt Flow Rate（g/10min） | 20.0~30.0 | Load 5kg，230℃，ASTM D1238 |
Water Absorption（%）（Time 24 hr） | ≤0.10 | ISO 62 |
Linear Mold Shrinkage（cm/cm） | 0.0200~0.0300 | |
Molecular Properties | ||
Molecular weight（W Da） | 18~22 | GPC,DMF,ISO 16014 |
Intrinsic viscosity（dl/g） | 0.8~0.9 | 30℃,DMAC |
Molecular weight distribution | 2.0-3.0 | GPC,DMF,ISO 16014 |
Mechanical Properties | ||
Tensile Modulus（Thickness2.00mm）（MPa） | 800~1000 | 1.0mm/min,ASTM D638 |
Yield Strength（Thickness2.00mm）（MPa） | 20~35 | 50mm/min,ASTM D638 |
Break Strength（Thickness2.00mm）（MPa） | 20~30 | 50mm/min,ASTM D638 |
Elongation at Yield（%） | 10~20 | 50mm/min,ASTM D638 |
Elongation at Break（%） | ≥300 | 50mm/min,ASTM D638 |
Hardness, Shore D（Thickness2.00mm） | 65~75 | ASTM D2240 |
Thermal Properties | ||
Melting Point（℃） | 130~140 | ASTM D3418 |
Decomposition Temperature（℃） | ≥350 | 1% wt. loss / in air |
