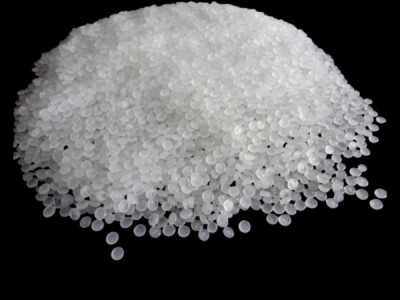

Zheflon®FL2005 PVDF - Extrusion Grade | Suitable for the application of fishing line
Zheflon®FL2005 PVDF - Extrusion Grade | Suitable for the application of fishing line
Zheflon®FL2005 PVDF is medium viscosity grade with high abrasion resistance, high temperature capabilities and excellent aging resistance.
| Categories | PVDF Extrusion Grade |
|---|---|
| Brand | Zheflon PVDF & Flurine FKM Manufacturer |
| Model | FL2005 |
| Water Absorption（%） | ≤0.15 |
| Melt Flow Rate（g/10min） | 1.0-6.0 |
| Secondary Melting Point（℃） | 165-175 |
| Break Strength/mPa | ≥25 |
| Update Time | Aug 10,2025 |
Detail Information
Description
Zheflon® FL2005 is a medium-viscosity grade PVDF homopolymer known for its high purity and excellent processability.
Key Properties:
1. Outstanding chemical resistance to most aggressive substances and solvents
2. High mechanical strength and toughness
3. Superior abrasion resistance
4. Excellent heat resistance for high-temperature applications
5. Long-term aging resistance
6. Low permeability to most gases and liquids
7. Easily melt-processed by conventional extrusion and molding techniques
Typical Applications:
Zheflon® FL2005 is primarily used in the production of fishing lines and other monofilament products, offering a balance of strength, durability, and chemical resistance required in demanding environments.
Technical Specifications
Specifications | Range | Reference Standard | ||||
Moisture Content (%) | ≤0.10 | GB/T 6284 | ||||
Melt Flow Rate（g/10min） | 1.0-6.0 | Load 10kg, 230℃, GB/T 3682 | ||||
Secondary Melting Point (℃） | 165-175 | GB/T19466 | ||||
Break Strength（Thickness2.00mm）（MPa） | ≥40 | GB/T 1040 | ||||
Elongation at Break（%） | ≥10 | GB/T 1040 | ||||
Yield Strength（Thickness2.00mm）（MPa） | ≥40 | GB/T 1040 | ||||
Elongation at Yield（%） | ≥8 | GB/T 1040 | ||||
Whiteness | ≥40 | GB/T 2913 | ||||
Yellowness | ≤10 | HB/T 3862 | ||||
