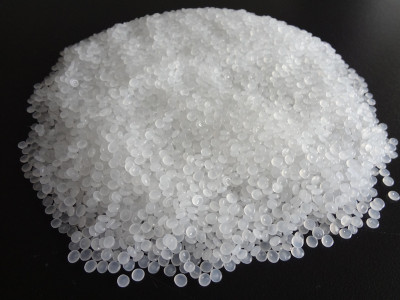

Zheflon® FL2606 PVDF — Extrusion Grade Copolymer for Wire and Cable Applications
Zheflon® FL2606 PVDF is an extrusion-grade copolymer engineered for wire and cable applications. It offers excellent thermal stability, chemical resistance, and mechanical performance, ensuring smooth extrusion and long-term reliability of insulation and jacketing layers.
Detail Information
Description
Zheflon® FL2606 is a medium to low melt viscosity PVDF copolymer with high purity and excellent chemical stability to most active substances and solvents. Excellent mechanical strength and toughness; High wear resistance, weather resistance, aging resistance. For the low permeability of most gases and liquids, it is easy to melt through the standard extrusion method. It is suitable for wire and cable applications.
Technical Specifications
Specifications | Range | Reference Standard | ||||
Melt Flow Rate（g/10min） | 3.0-9.0 | Load 5kg, 230℃, GB/T 3682 | ||||
Secondary Melting Point (℃） | 125-165 | GB/T19466 | ||||
Break Strength（Thickness2.00mm）（MPa） | ≥20 | GB/T 1040 | ||||
Elongation at Break（%） | ≥50 | GB/T 1040 | ||||
Yield Strength（Thickness2.00mm）（MPa） | ≥20 | GB/T 1040 | ||||
Elongation at Yield（%） | ≥5 | GB/T 1040 | ||||
Whiteness | ≥40 | GB/T 2913 | ||||
Yellowness | ≤10 | HB/T 3862 | ||||
